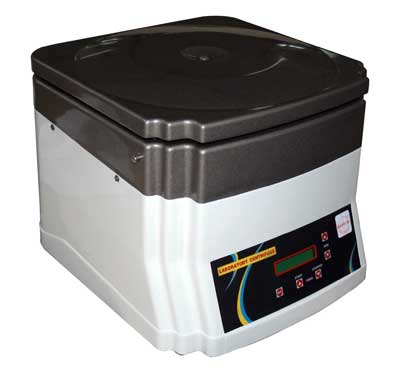

Laboratory Centrifuge

General purpose Laboratory Centrifuge Machine, Microprocessor based, digital.

Body made of rust proof ABS Plastic injection moulding with metallic protection bowl.

Lid lock for safe drive.

Equipped with 0-99 minute timer.

2 lines of 16 character LCD display of r.p.m., R.c.f, for set and run time.

Programmable speed regulator from 500 to 4400 rpm in interval of 100 rpm.

Last test parameter recall and displays automatically on LCD

Technical Parameter

Max.Speed	4400rpm
Motor	UniversalMotor(withcarbonbrushes)1/8H.P.
Power	AC220V50Hz+10%
Dimension of Machine	L=395mm,W=360mm,H=280mm
Dimension of outer box	510x510x390mm
Nettweight	12.5kg.Approx.Grossweightwithbox=14kg.
—Current	220volts,50HzA.C.

The machine comes with any one rotor head, to be selected by customer from below mentioned table.

Type	Nos. of holes x Tube volume
Swing out	8x15ml
Swing out	16 x vacuutainers
Swing out	16 x 12x75mm / 12x100mm borosil tubes
Angle	12 x 15ml.

The above mentioned roto rheads are completed with S.S.tube carriers, suitable Glass/PVC centrifugal tubes, head puller, spanner and rubber cushions.

—Machine is well packed in 5 ply corrugated box.

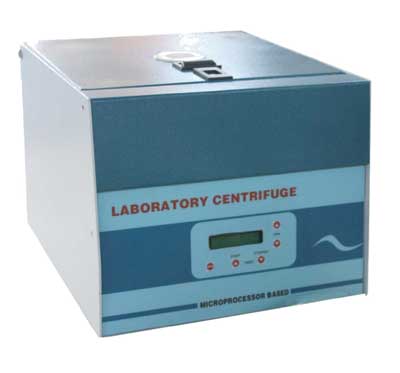

General Purpose Laboratory Centrifuge Machine.

Microprocessor based (LCD Display).

Heavy duty C.R.C construction finished with powder coating.

Fitted with well-balanced universal motor.

Digital timer of range 0-59 minutes.

Digital Speed Indicator.

Programmable speed regulator.

Lid lock for safe drive.

The lid is light in weight to avoid accident due to heavy weight metallic lids during operations.

Very Stable

Low in Noise

No Vibrations

Fitted with Anti Vibration Pads

Sr.No. Rotor Capacity Rotor Types 1 16X15ml. Swing Out Head 2 12x15ml Swing Out Head 3 8x15ml. Swing Out Head 4 6x50ml. Swing Out Head 5 4x50ml. Swing Out Head 6 16x15ml. Angle Head 7 12x15ml. Angle Head 8 8x15ml. Angle Head 9 6x50ml. Angle Head 10 4x50ml. Angle Head 11 4x100ml. Angle Head 12 24x15ml. Angle Head

Techanical Parameter Max. Speed 5200 R.P.M Motor Universal motor Power AC 220V 50Hz +10% Dimension Machine L=415mm, W-360mm, H-305mm Dimension of Outer Box 510x510x390mm Weight of Machine 21kg. approx., weight with box=23.5kg

The above mentioned rotor heads are completed with S.S. tube carriers, suitable Glass/PVC centrifugal tubes, head puller, spaner and rubber cushions.
Complete Machine is packed in thermocol box further packed in corrugated box
• Any Special Rotor Head can be manu-factured on customer's demand
• Speed can be given upto 6000rpm if specific requirment by any customer.

Heavy duty C.R.C. construction finished with powder coating.

Fitted with brushless automatic balanced motor.

Microprocessor based, 4 lines, 20 characters.

LCD Display of set time, run time, set and run rpm, rcf.

Programmable speed regulator to control speed from 500 to 6000rpm, depending upon the type of rotor fast spin option.

50 programmes can be stored in memory.

Equipped with 0-99 minute timer.

Automatic rotor identification on display.

Additional electronic lid lock which does not allow to open lid when machine is running.

Dynamic brake (automatic) and imbalance detector are provided.

Selection of 3 acceleration + 4 deceleration profile.

Aero Dynamic Compact

Very Stable

Stainless Steel Centrifuge bowl of 304 quality

Low Noise

High Performance

Fast Spin option

Techanical Parameter
Max. Speed	6000r / min.
Max. RCF	4390xg
Motor	Brushless
Noise	<65dB
Power	AC 220V 50Hz 15A

Note: The speed of machine depends upon rotor being used. If rotor is heavy the speed will reduce as per below mentioned table.

Rotor Type	Rotor Capacity	Speed on Rotor(r.p.m.)	R.C.F. onRotor
Angle Heads	24×15ml.	4000	2760xg
Angle Heads	24 Vacuutainers	6000	4140xg
Angle Heads	32 tubes of 12×75mm	6000	4140xg
Angle Heads	32 tubes of 12×100mm	6000	4140xg
Angle Bucket Rotor	4×100ml.	5000	3450xg
Angle Bucket Rotor	4×50ml.	6000	4390xg
Swing Out Rotor	16×15ml.	5200	3588xg
Swing Out Rotor	12×15ml.	5200	3588xg

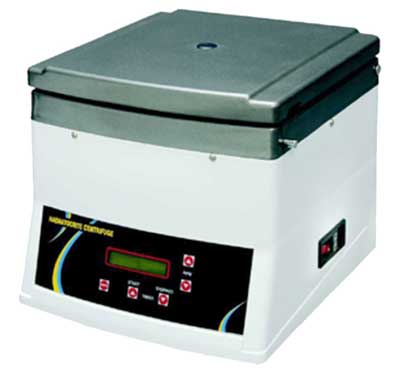

Haematocrite Centrifuge Machine, Max. speed 13000 r.p.m.

Compact body which is made of plastic injection moulded.

Inner safety bowl made of stainless steel

Fitted with well balance universal motor having long life with imported carbons.

Digital display shows Set time/ Run time /R.P.M.

Microprocessor based Digital timer of range 0-15 min with LCD display.

Preset speed controls thru microprocessor from 2000 to 13000 r.p.m.

Micro Hematocrite rotor to accommodate 24 capillaries of 75mm x 1mm or 12 capillaries.

Heparinised capillary tubes 75mm long x 1mm bore (Pack of 100 Nos.)

Non-Heparinised capillary tubes 75mm long x 1mm bore (Pack of 100 Nos.)

Reading device

Sealing wax- 1tray

Haematocrite Centrifuge (Brushless)
• All specification are same as above but in this model the motor is Brushless (without carbon)

Note: Speed can also increased upto16000 r.p.m. on the demand of customer

Dimension Machine	L=290mm, W-270mm, H-240mm
Weight Machine	9.5kg. approx.
Dimension of Box	L-355mm x W355 x H-340mm
Weight of Box	11kg. approx.

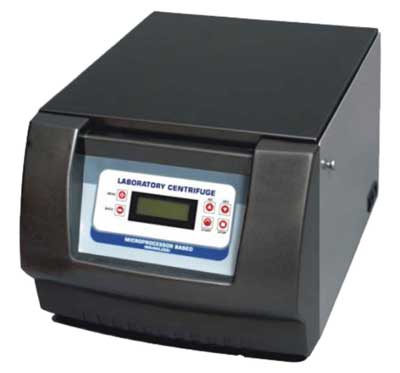

High speed, high capacity bench top, Laboratory Centrifuge Machine, Microprocessor based.

Heavy duty C.R.C. construction finished with powder coating.

Stainless steel centrifugal bowl for extra protection and easy cleaning.

Fitted with well balanced brushless motor with electronic drive. Digital timer 0-99 minutes.

4 lines 20 characters LCD display for set time, run time ,set & run rpm, rcf and rotor identification.

50 programmes can be stored in memory and automatic rotor identification on display.

Additional electronic lid lock who does not allow to open lid when machine is running and opens automatically after centrifuge time is over.

Dynamic brakes (automatic) & imbalance detector are provided.

Fast spin option.

Selection of 3 acceleration + 4 deceleration profile.

Programmable speed regulator from 2000 to 20000 in interval of 100 rpm.

Lat test parameter recall and displays automatically on LCD

Supply completed with instruction manual, cord & plug to work on 220 volts 50 Hz A.C.

Machine comes with 12x1.5/ 2ml angle rotor head.

Rotors available :
Angle Rotor Capacity	Speed(RPM) Container	RCF 'g'
*12x1.5/2ml	20000	27800
*24 x1.5 ml	16000	22240
* 12 x 15 ml	16000	22240
* 8 x 25 ml	16000	22240
* 6 x 50 ml	16000	22240
* 4 x 100 ml	14500	20155

All the above stated heads are supplied with P.P. Centrifuge Tubes, Head Puller, and Spanner. The 2ml rotor comes with adopters to accept eppendroff tubes of 0.2/0.5ml
Note: The speed of the machine depends upon the type of rotor being used. If rotor is heavy the speed will reduce as per above mentioned table

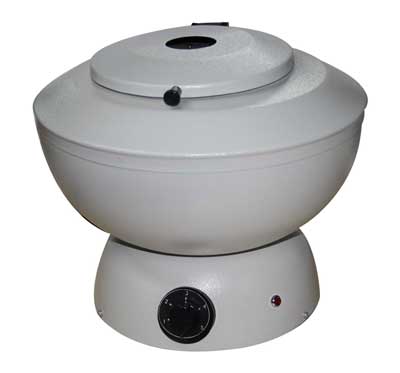

This round Centrifuge Machine is widely used in pathological laboratories & hospitals for routine centrifuge test. These are fitted with resiliently mounted motor for vibration free performance & having built-in 5 steps speed regulator. These can be supplied with fixed angle head or swing out head as per requirement.


Maximum Speed : 3500 RPM
Maximum RCF : 1600g
Operates on 220-230 volts, SOHz Single Phase.

Capacities Available are :-
* 4x 15ml tubes
* 6x 15ml tubes
* Bx 15ml tubes

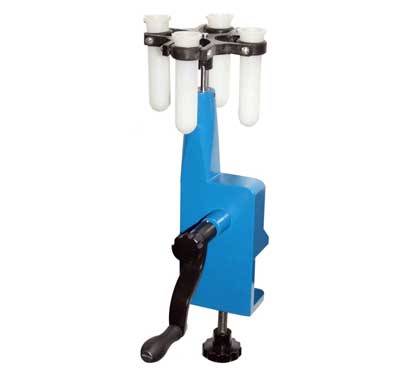

A very economic centrifuge that clamps right to any bench top. Apparatus has table clamp, hand crank, 4 buckets to hold tubes up to 15ml in capacity.

Fitted with Anti Vibration Pads

Motor Remain Cool even after running full time

See through acrylic lid

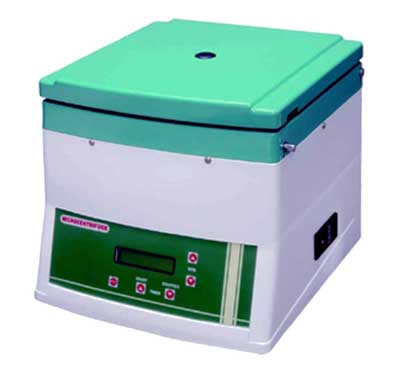

High speed Micro Centrifuge Max R.P.M. 16000

Heavy duty plastic injection moulded body.

Stainless Steel protection bowl.

Fitted with well balance universal motor having long life with in ported carbons.

Microprocessor based Digital Timer of range 0-15 min. with LCD display.

Preset speed controls thru microprocessor from 2000 to 16000r.p.m.

Digital display shows Set Time/Run Time/R.P.M.

Rotor Head to accommodate 12 eppendorf

(Centrifuge Tubes with cover) of 1.5ml/2ml (12 x 1.5/2ml)

Reduction adopters for 1.5ml eppendorf tubes

Head Puller, Spanner, Dust cover, Instruction manual, Cord & plug to work on 220 volts 50 Hz A.C.

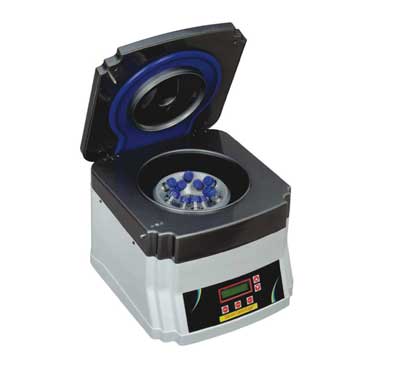

Micro Centrifuge Brushless (Without Carbons) Model RMC-16BL

Microprocessor Based Premium model with maintenance free brushless induction motor. Modular design as per international standards, stainless steel protection bowl. Fitted with microprocessor based LCD pannel for 0-99 minutes countdown timer, digital rpm meter and programmable speed controller. Also featured with dynamic brake, Electronic lid lock, imbalance detector 10 programme memory. 3 accelerations and 3 deceleration. Supply with Angle Rotor 24×1.5/2ml. with adopters for 05/0.2ml. (Max Speed 16000 rpm), Head Puller, Spanner, Dust cover, Instruction manual, Cord & plug to work on 220 volts 50 Hz A.C.

The best model for clinical, Pathological, Biochemistry Labs to separate blood serum

It is also most suitable for I.V.F. labs where low speed is recommended.

Technical Specifications

Bench top Digital Microprocessor based Serum Centrifuge Machine with LCD display

The body is made of rust proof ABS injection moulding with metallic protection bowl.

Fitted with microprocessor based preprogrammed speed controller.

Digital Timer 0-99 minutes.

Digital display of speed (r.p.m.)

Maximum speed 3000 r.p.m (without load) and 2850 rpm on load.

Programmed remains in memory and displayed on LCD. Just push start button and the machine will run on programmed time and R.P.M.

8x15m1 swing out head or 12x15m1 Angle head or Head to accommodate 16 vacultaimes/Borosilicate glass tubes of 12x75m/12x100m (As per choice of Doctor)

To work on 220 volts 50 Hz A. C.

Dimension of Machine: L = 395mm, W = 360mm, H = 280mm
Weight of Machine: 12.5kg. Approx.
Gross weight of Machine: 14 kg.

Standard Accessories & Packing

The above mentioned rotor heads are completed with S.S. tube carriers, suitable Glass/PVC centrifugal tubes, head puller, spanner and rubber cushions.

Complete machine is packed in thermocol box further packed in corrugated box.
