Laminar Air Flow

Laminar Air Flow Cabinet 'Portable'

Model :- RSVW-51-01 Series
  • Our laminar air flow cabinets find application in many microbiological and cell culture laboratories that require a highly sterile working environment for performing research activities.
  • They are modern in design and feature certified quality construction; with options and accessories that make them highly efficient.
  • They are devised to carefully direct HEPA filtered air across the work surface as part of the laminar flow process, thus helping in maintaining sterility, preventing cross-contamination and reducing turbulence.
    •
    Laminar Air Flow Cabinet (Portable) RSVW-51-01
    Cleanliness Class 100.
    Velocity 0.35-0.50m/sec.
    HEPA Filter Confirms to ISO standard 14644 (Class 5).
    99.97%-99.99% efficiency for particles down to 0.3 micron.
    Mesh guard for protection of HEPA Filter.
    Pre Filter 90.00% efficiency for particles down to 5 micron.
    Airflow Top to downward (Vertical). High airflow capacity.
    Noise Level Low noise level. 60 decibel ± 5%.
    Cabinet High quality, 19mm thick Ply board covered with sun mica from the outside and epoxy painted from the inside.
    Work Table Perforated. Made up of stainless steel 304gr. Cock for gas on work table.
    Front door Made of Acrylic (Foldable).
    UV Lamp To sterilize the work zone.
    9W (make Philips Holland).
    Illumination High intensity LED tube, 9W.
    Heavy Duty Blower Dynamically balanced with 0.25 HP Electric Motor mounted on an anti vibration pad 1440rpm motor.
    Switches Switches for blower, Fluorescent light & UV light.
    Pressure 0-50mm range (Manometer).
    Power Supply 230V ± 10V/50 Hz single phase A.C.
    Working Area Size 45x45x45cm.

    Hepa Filter

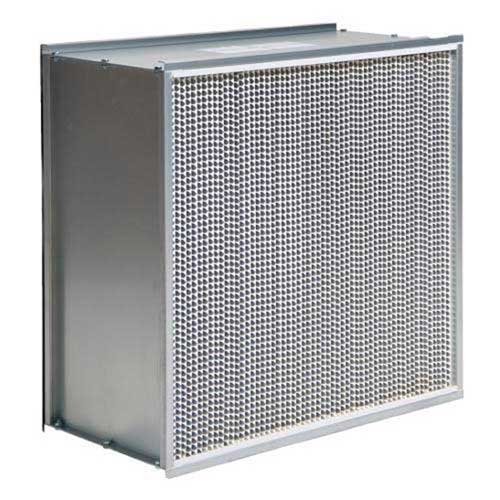

    Model :- RSHF-55 Series
  • Our HEPA or the high-efficiency particulate absorbing filter has a filtration efficiency of 99.97%, for particles up to 0.3 micrometers (µm) in diameter.
  • The filter medium is fabricated from 100% fire proof micro fiberglass pleated with aluminum/cadmium plated mild steel with an exclusive plastic base adhesive.
    • Hepa Filter RSHF-55
  • Continuous neoprene sponge rubber seals are provided on the filter frame for effective sealing.
  • The filter has excellent resistance to chemicals including corrosive vapors and most acids except phosphoric acid and hydro solvents which have little or no effect.
  • It also has excellent electric qualities; it neither absorbs moisture nor undergoes any chemical changes through contact with moisture.
  • It can operate in temperatures up to 150°C intermittent and 121°C continuous and 100% relative humidity.
  • These filters are tested by the DOP test method, which is by far the most accurate and stringent test.
    •
    Model No. Filter Type Sizes
    RSHF-55-01 HEPA 60 x 60 x 15 cm
    RSHF-55-02 HEPA 90 x 60 x 15 cm
    RSHF-55-03 HEPA 120 x 60 x 15 cm

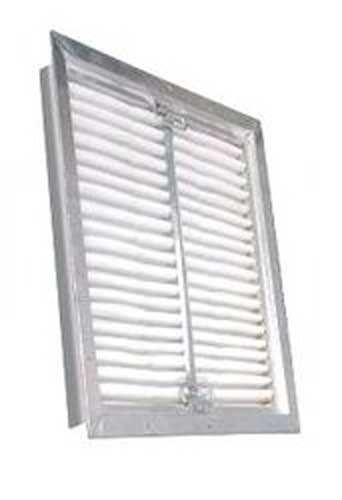

    Pre Filter

    Model :- RSPF-55 Series
  • These filters have been specifically designed to meet the requirements of clean air in general ventilating and air-conditioning systems in Hospitals, Computer installations, and also in Nuclear, Pharmaceutical, Petro-Chemical, Fertilizers, Synthetic fiber industries and Compressor applications.
  • The heart of the filter is a reinforced washable synthetic non-woven filter media/fiber glass.
  • The fiber media is pleated in an accordion format along with a backing of wire/HDPE netting.
  • The mediums are carefully selected to offer the best possible performance to suit specific needs.
  • In order to obtain uniformity of dust loading, the filter plates are kept apart by means of aluminum separators.
    • Pre Filter RSPF-55
  • The complete filter pack is sealed into a rigid cassette of mild steel or aluminum.
  • The filter is offered in a three piece construction namely the element cassette, the outer casing and the front grill.
  • For replacement, only the cassette element needs to be changed.
  • The Micronics fine filter has a filtration efficiency of up to 90.0%, with particle retention >5.0 micron and it can operate at a temperature of up to 120°C and 100% relative humidity.
  • Before use, the filters are tested in accordance with the specification of BS 2831 Standards.
    •
    Model No. Filter Type Sizes
    RSPF-55-04 PRE 55 x 55 x 5 cm
    RSPF-55-05 PRE 85 x 55 x 5 cm

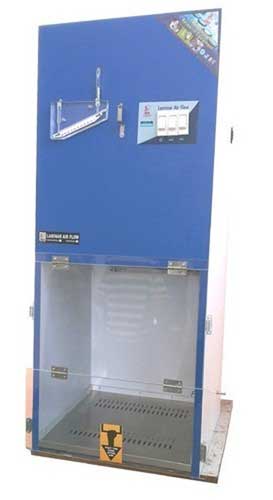

    Advanced Laminar Air Flow Workstation Vertical 'Mild Steel'

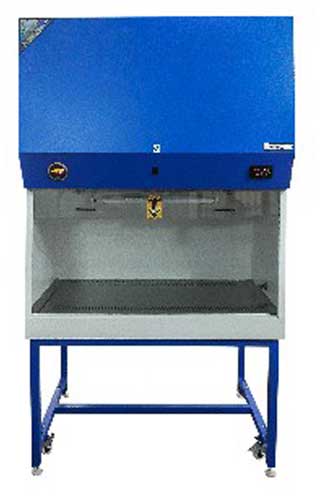

    Model :- RSVM-56A Series
  • We offer a precision engineered range of Vertical Laminar Air Flow workstations, which are manufactured in line with the international quality standards to ensure optimum quality in the final product.
  • In our Vertical Laminar Air Flow Workstations, the laminar air is directed vertically downwards onto the working area. Thus, these are not blowing air straight to the operators face, hence providing for greater operator protection.
  • They find application in microbiological labs and other research centers engaged in investigative work.

    • Advanced Laminar Air Flow Workstation (Vertical) Mild Steel RSVM-56A
    Cleanliness Class 100.
    Velocity 0.35-0.50m/sec.
    HEPA Filter Confirms to ISO standard 14644 (Class 5).
    99.97%-99.99% efficiency for particles down to 0.3 micron.
    Mesh guard for protection of HEPA Filter.
    Pre Filter 90.00% efficiency for particles down to 5 micron.
    Airflow Top to downward (Vertical). High airflow capacity.
    Noise Level Low noise level. 60 decibel ± 5%.
    Cabinet The cabinet is made of Mild Steel which is duly powder coated.
    Work Table Perforated. Made up of stainless steel 304gr. Cock for gas on work table.
    Front door Made of Toughened glass. (Motorized for easy working).
    UV Lamp To sterilize the work zone.
    15/30W (make Philips Holland).
    Illumination High intensity LED lights for easy operations.
    Heavy Duty Blower Dynamically balanced with 0.25 HP Electric Motor mounted on an anti-vibration pad 1440rpm motor.
    Switches Microprocessor based Touch Panel for Blower, LED light & UV light. (UV light with Timer). Motorized front door of toughened glass.
    Pressure 0-50mm range (Digital Manometer with filter failure alarm).
    Power Supply 230V ± 10V/50 Hz single phase A.C.
    Electricals 15/5 AMP socket with switch.
    Safety Features Voltage fluctuations Protection. Micro switches for UV & LED Lights.
    Stand Castor Wheels for easy movement. Front Wheels are lockable with brakes.

    Model No. Working Area Sizes
    RSVM-56A-01 60 x 60 x 60 cm
    RSVM-56A-02 90 x 60 x 60 cm
    RSVM-56A-03 120 x 60 x 60 cm
    RSVM-56A-04 150 x 60 x 60 cm

    Advanced Laminar Air Flow Workstation 'Vertical' Complete Stainless steel

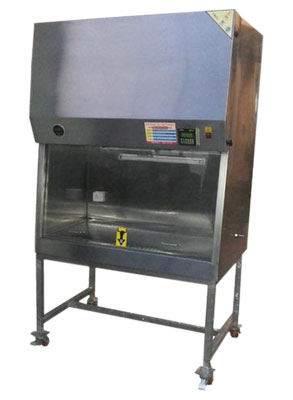

    Model :- RSVS-56A Series
  • We offer a precision engineered range of Vertical Laminar Air Flow workstations, which are manufactured in line with the international quality standards to ensure optimum quality in the final product.
  • In our Vertical Laminar Air Flow Workstations, the laminar air is directed vertically downwards onto the working area. Thus, these are not blowing air straight to the operator’s face, hence providing for greater operator protection.
  • They find application in microbiological labs and other research centers engaged in investigative work.
    •
    Advanced Laminar Air Flow Workstation (Vertical) Complete S.S. RSVS-56A

    Cleanliness Class 100.
    Velocity 0.35-0.50m/sec.
    HEPA Filter Confirms to ISO standard 14644 (Class 5).
    99.97%-99.99% efficiency for particles down to 0.3 micron.
    Mesh guard for protection of HEPA Filter.
    Pre Filter 90.00% efficiency for particles down to 5 micron.
    Airflow Top to downward (Vertical). High airflow capacity.
    Noise Level Low noise level. 60 decibel ± 5%.
    Cabinet The cabinet is made of 304 grade stainless Steel.
    Work Table Perforated. Made up of stainless steel 304gr. Cock for gas on work table.
    Front door Made of Toughened glass. (Motorized for easy working).
    UV Lamp To sterilize the work zone.
    15/30W (make Philips Holland).
    Illumination High intensity LED lights for easy operations.
    Heavy Duty Blower Dynamically balanced with 0.25 HP Electric Motor mounted on an anti-vibration pad 1440rpm motor.
    Switches Microprocessor based Touch Panel for Blower, LED light & UV light. (UV light with Timer). Motorized front door of toughened glass.
    Pressure 0-50mm range (Digital Manometer with filter failure alarm).
    Power Supply 230V ±10V/50 Hz single phase A.C.
    Electricals 15/5 AMPsocket with switch.
    Safety Features Voltage fluctuations Protection. Micro switches for UV & LED Lights.
    Stand Castor Wheels for easy movement. Front Wheels are lockable with brakes.

    Model No. Working Area Sizes
    RSVS-56A-05 60 x 60 x 60 cm
    RSVS-56A-06 90 x 60 x 60 cm
    RSVS-56A-07 120 x 60 x 60 cm
    RSVS-56A-08 150 x 60 x 60 cm

    Laminar Air Flow Workstation Vertical 'Wooden'

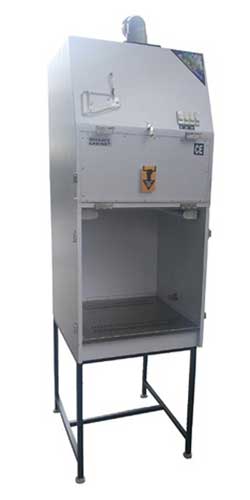

    Model :- RSVW-57 Series
  • We offer a precision engineered range of Vertical Laminar Air Flow workstations, which are manufactured in line with the international quality standards to ensure optimum quality in the final product.
  • In our Vertical Laminar Air Flow Workstations, the laminar air is directed vertically downwards onto the working area. Thus, these are not blowing air straight to the operator’s face, hence providing for greater operator protection.
  • They find application in microbiological labs and other research centers engaged in investigative work.
    • Laminar Air Flow Workstation (Vertical) Wooden RSVW-57

    Cleanliness Class 100.
    Velocity 0.35-0.50m/sec.
    HEPA Filter Confirms to ISO standard 14644 (Class 5).
    99.97%-99.99% efficiency for particles down to 0.3 micron.
    Mesh guard for protection of HEPA Filter.
    Pre Filter 90.00% efficiency for particles down to 5 micron.
    Airflow Top to downward (Vertical). High airflow capacity.
    Noise Level Low noise level. 60 decibel ± 5%.
    Cabinet The cabinet is made of 19mm thick ply board covered with white sun mica & epoxy painted from inside.
    Work Table Perforated. Made up of stainless steel 304gr. Cock for gas on work table.
    Front door Made of Acrylic (Foldable).
    UV Lamp To sterilize the work zone.
    15/30W (make Philips Holland).
    Illumination High intensity LED lights for easy operations.
    Heavy Duty Blower Dynamically balanced with 0.25 HP Electric Motor mounted on an anti-vibration pad 1440rpm motor.
    Switches Switches for Blower, Fluorescent light and UV light.
    Pressure 0-50mm range. (Digital Manometer)
    Power Supply 230V ± 10V/50 Hz single phase A.C.

    Model No. Working Area Sizes
    RSVW-57-01 60 x 60 x 60 cm
    RSVW-57-02 90 x 60 x 60 cm
    RSVW-57-03 120 x 60 x 60 cm
    RSVW-57-04 180 x 60 x 60 cm

    Laminar Air Flow Workstation Vertical Complete 'Stainless Steel'

    Model :- RSVS-57 Series
  • We offer a precision engineered range of Vertical Laminar Air Flow workstations, which are manufactured in line with the international quality standards to ensure optimum quality in the final product.
  • In our Vertical Laminar Air Flow Workstations, the laminar air is directed vertically downwards onto the working area. Thus, these are not blowing air straight to the operators face, hence providing for greater operator protection.
  • They find application in microbiological labs and other research centers engaged in investigative work.
    •
    Laminar Air Flow Workstation (Vertical) Complete S.S. RSVS-57

    Cleanliness Class 100.
    Velocity 0.35-0.50m/sec.
    HEPA Filter Confirms to ISO standard 14644 (Class 5).
    99.97%-99.99% efficiency for particles down to 0.3 micron.
    Mesh guard for protection of HEPA Filter.
    Pre Filter 90.00% efficiency for particles down to 5 micron.
    Airflow Top to downward (Vertical). High airflow capacity.
    Noise Level Low noise level. 60 decibel ± 5%.
    Cabinet The cabinet is made up of 304 grade stainless steel.
    Work Table Made up of a perforated sheet of stainless steel 304gr. Cock for gas on work table.
    Front door Made up of Acrylic and is duly counter balanced.
    UV Lamp To sterilize the work zone.
    15/30W (make Philips Holland).
    Illumination High intensity LED lights for easy operations.
    Heavy Duty Blower Dynamically balanced with 0.25 HP Electric Motor mounted on an anti vibration pad 1440rpm motor.
    Switches Microprocessor based Switches for Blower, LED light and UV light, with LED back light display. (UV light with Timer)
    Pressure 0-50mm range (Digital Manometer); with filter failure alarm system.
    Power Supply 230V ± 10V/50 Hz single phase A.C.

    Model No. Working Area Sizes
    RSVS-57-06 60 x 60 x 60 cm
    RSVS-57-07 90 x 60 x 60 cm
    RSVS-57-08 120 x 60 x 60 cm
    RSVS-57-09 180 x 60 x 60 cm

    Laminar Air Flow 'In Vitro Fertilization' Workstation

    Model :- RSIV-57-10 Series
    SPECIFICATIONS:
  • The Radical IVF workstation is especially designed for use in fertility laboratories for research work in the field of human and animal reproduction.
    • Laminar Air Flow IVF(In Vitro Fertilization) Workstation RSIV-57-10
  • A controlled work environment is of high priority due to the complexity of the process.
  • This includes hygienic conditions to minimize microbial contamination; a warm work surface for the sustenance of biological matter and provisions for the use of microscopes in the Radical IVF workstations.
  • Air is taken in from above the workstation and passed through an ULPA filter.
  • The filtered air is then passed through the main chamber in a vertical laminar (Unidirectional) air stream before being exhausted through the front opening.

    • TECHNICAL FEATURES:-
  • Radical IVF workstation provides ISO Class 3 air cleanliness within the working zone.
  • The workstation interior is constructed of high quality stainless steel, making the work zone easy to clean. The interior surface will not chip, rust or generate particles.
  • The ergonomically designed work surface with a curved front edge is designed for maximum operator comfort. The warm work top is maintained at a constant temperature of 37°± 0.4°C (32.7°F). This not only achieves excellent stability, but also homogenity. The work top temperature is constantly displayed on the front panel, and is easily adjustable from the controller.
  • High quality ULPA filters have been installed. These filters use an improved mini-pleat separation technique to maximize the surface area.
  • The dimensions of the Working area are: 120x60x60cm.

    • Laminar Air Flow Workstation Vertical 'Mild Steel'

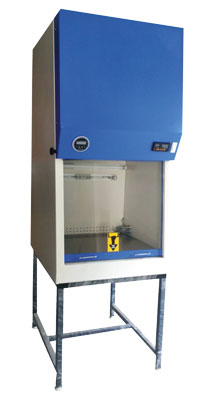

    Model :- RSVM-57 Series
  • We offer a precision engineered range of Vertical Laminar Air Flow workstations, which are manufactured in line with the international quality standards to ensure optimum quality in the final product.
  • In our Vertical Laminar Air Flow Workstations, the laminar air is directed vertically downwards onto the working area. Thus, these are not blowing air straight to the operator’s face, hence providing for greater operator protection.
  • They find application in microbiological labs and other research centers engaged in investigative work.
    •
    Laminar Air Flow Workstation (Vertical) Mild Steel RSVM-57

    Cleanliness Class 100.
    Velocity 0.35-0.50m/sec.
    HEPA Filter Confirms to ISO standard 14644 (Class 5).
    99.97%-99.99% efficiency for particles down to 0.3 micron.
    Mesh guard for protection of HEPA Filter.
    Pre Filter 90.00% efficiency for particles down to 5 micron.
    Airflow Top to downward (Vertical). High airflow capacity.
    Noise Level Low noise level. 60 decibel ± 5%.
    Cabinet The cabinet is made up of  Mild Steel, which is duly powder coated.
    Work Table Made up of a perforated sheet of stainless steel 304gr. Cock for gas on work table.
    Front door Made up of Acrylic and is duly counter balanced.
    UV Lamp To sterilize the work zone.
    15/30W (make Philips Holland).
    Illumination High intensity LED lights for easy operations.
    Heavy Duty Blower Dynamically balanced with 0.25 HP Electric Motor mounted on an anti vibration pad 1440rpm motor.
    Switches Microprocessor based Switches for Blower, LED light and UV light, with LED back light display. (UV light with Timer)
    Pressure 0-50mm range (Digital Manometer); with filter failure alarm system. alarm system.
    Power Supply 230V ± 10V/50 Hz single phase A.C.

    Model No. Working Area Sizes
    RSVM-57-11 60 x 60 x 60 cm
    RSVM-57-12 90 x 60 x 60 cm
    RSVM-57-13 120 x 60 x 60 cm
    RSVM-57-14 180 x 60 x 60 cm

    Advanced Laminar Air Flow Workstation 'Horizontal Wooden' With Microprocessor Control

    Model :- RSHW-58A Series
  • We offer a precision engineered range of Horizontal Laminar Air Flow workstations, which are manufactured in line with the international quality standards to ensure optimum quality in the final product.
  • In our horizontal laminar air flow cabinets, the HEPA filter is fitted on the back side of the cabinet. Thus, filtered air blows across the work zone in a horizontal direction; this constant flow of air provides material and product protection.
  • These cabinets help to create a particle and bacteria free working environment to carry out specialized work.
  • They find application in various fields such as life science research, microbiology, IVF, IUI and histopathology / pathology labs, plant tissue and cell culture and pharmaceutical and electronics industry and many more
    •
    Advanced Laminar Air Flow Workstation (Horizontal) Wooden With Microprocessor Control RSHW-58A

    Cleanliness Class 100.
    Velocity 0.35-0.50m/sec.
    HEPA Filter Confirms to ISO standard 14644 (Class 5).
    99.97%-99.99% efficiency for particles down to 0.3 micron.
    Mesh guard for protection of HEPA Filter.
    Pre Filter 90.00% efficiency for particles down to 5 micron.
    Airflow Frontward Horizontally. High airflow capacity.
    Noise Level Low noise level. 60 decibel ± 5%.
    Cabinet The cabinet is made up of 19mm thick Dura Board covered with sun mica from the outside and epoxy painted from the inside.
    Work Table Made up of stainless steel 304gr. Cock for gas on work table.
    Front door Made up of Acrylic (Foldable).
    Side Panels 6mm± 5mm thick Acrylic sheet.
    UV Lamp To sterilize the work zone.
    15/30W (make Philips Holland).
    Illumination High intensity LED white light for easy operations.
    Heavy Duty Blower Dynamically balanced with 0.25 HP Electric Motor mounted on an anti-vibration pad 1440rpm motor.
    Switches Microprocessor based Switches for Blower, LED light and UV light, with LED back light display. (UV light with Timer)
    Pressure 0-50mm range (Digital Manometer); with filter failure alarm system.
    Power Supply 230V ± 10V/50 Hz single phase A.C.

    Model No. Working Area Sizes
    RSHW-58A-01 60 x 60 x 60 cm
    RSHW-58A-02 90 x 60 x 60 cm
    RSHW-58A-03 120 x 60 x 60 cm
    RSHW-58A-04 180 x 60 x 60 cm

    Laminar Air Flow Workstation 'Horizontal Wooden'

    Model :- RSHW-58 Series
  • We offer a precision engineered range of Horizontal Laminar Air Flow workstations, which are manufactured in line with the international quality standards to ensure optimum quality in the final product.
  • In our horizontal laminar air flow cabinets, the HEPA filter is fitted on the back side of the cabinet. Thus, filtered air blows across the work zone in a horizontal direction; this constant flow of air provides material and product protection.
  • These cabinets help to create a particle and bacteria free working environment to carry out specialized work.
  • They find application in various fields such as life science research, microbiology, IVF, IUI and histopathology / pathology labs, plant tissue and cell culture and pharmaceutical and electronics industry and many more.
    •
    Laminar Air Flow Workstation (Horizontal) Wooden RSHW-58

    Cleanliness Class 100.
    Velocity 0.35-0.50m/sec.
    HEPA Filter Confirms to ISO standard 14644 (Class 5).
    99.97%-99.99% efficiency for particles down to 0.3 micron.
    Mesh guard for protection of HEPA Filter.
    Pre Filter 90.00% efficiency for particles down to 5 micron.
    Airflow Frontward Horizontally. High airflow capacity.
    Noise Level Low noise level. 60 decibel ± 5%.
    Cabinet The cabinet is made up of 19mm thick Dura Board covered with sun mica from the outside and epoxy painted from the inside.
    Work Table Made up of stainless steel 304gr. Cock for gas on work table.
    Front door Made up of Acrylic (Foldable).
    Side Panels 6mm± 5mm thick Acrylic sheet.
    UV Lamp To sterilize the work zone.
    15/30W (make Philips Holland).
    Illumination High intensity LED white light for easy operations.
    Heavy Duty Blower Dynamically balanced with 0.25 HP Electric Motor mounted on an anti-vibration pad 1440rpm motor.
    Switches Switches for Blower, LED light and UV light.
    Pressure 0-50mm range (Inclined Manometer).
    Power Supply 230V ± 10V/50 Hz single phase A.C.

    Model No. Working Area Sizes
    RSHW-58-05 60 x 60 x 60 cm
    RSHW-58-06 90 x 60 x 60 cm
    RSHW-58-07 120 x 60 x 60 cm
    RSHW-58-08 180 x 60 x 60 cm

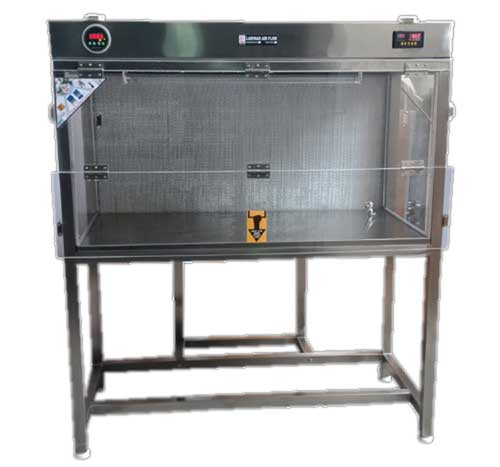

    Laminar Air Flow Workstation Horizontal Complete 'Stainless Steel'

    Model :- RSHS-58 Series
  • We offer a precision engineered range of Horizontal Laminar Air Flow workstations, which are manufactured in line with the international quality standards to ensure optimum quality in the final product.
  • In our horizontal laminar air flow cabinets, the HEPA filter is fitted on the back side of the cabinet. Thus, filtered air blows across the work zone in a horizontal direction; this constant flow of air provides material and product protection.
  • These cabinets help to create a particle and bacteria free working environment to carry out specialized work.
  • They find application in various fields such as life science research, microbiology, IVF, IUI and histopathology / pathology labs, plant tissue and cell culture and pharmaceutical and electronics industry and many more.
    •
    Laminar Air Flow Workstation (Horizontal) Complete S.S. RSHS-58

    Cleanliness Class 100.
    Velocity 0.35-0.50m/sec.
    HEPA Filter Confirms to ISO standard 14644 (Class 5).
    99.97%-99.99% efficiency for particles down to 0.3 micron.
    Mesh guard for protection of HEPA Filter.
    Pre Filter 90.00% efficiency for particles down to 5 micron.
    Airflow Frontward Horizontally. High airflow capacity.
    Noise Level Low noise level. 60 decibel ± 5%.
    Cabinet The cabinet is made up of 304 grade stainless steel.
    Work Table Made up of stainless steel 304gr. Cock for gas on work table.
    Front door Made up of Acrylic and is duly counter balanced.
    UV Lamp To sterilize the work zone.
    15/30W (make Philips Holland).
    Illumination High intensity LED white light for easy operations.
    Heavy Duty Blower Dynamically balanced with 0.25 HP Electric Motor mounted on an anti-vibration pad 1440rpm motor.
    Switches Microprocessor based switches for Blower, LED light & UV light with LED back light display. (UV light with Timer).
    Pressure 0-50mm range (Digital Manometer with filter failure alarm).
    Power Supply 230V ± 10V/50 Hz single phase A.C.

    Model No. Working Area Sizes
    RSHS-58-09 60 x 60 x 60 cm
    RSHS-58-10 90 x 60 x 60 cm
    RSHS-58-11 120 x 60 x 60 cm
    RSHS-58-11A 180 x 60 x 60 cm

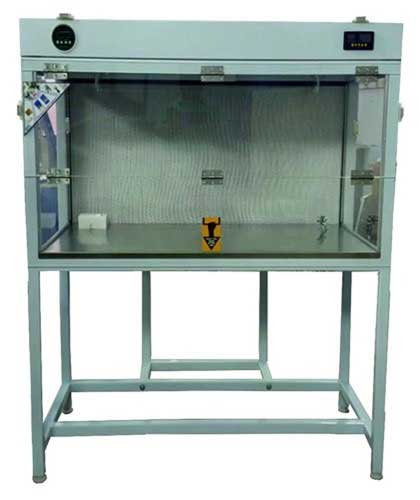

    Laminar Air Flow Workstation Horizontal 'Mild Steel'

    Model :- RSHM-58 Series
  • We offer a precision engineered range of Horizontal Laminar Air Flow workstations, which are manufactured in line with the international quality standards to ensure optimum quality in the final product.
  • In our horizontal laminar air flow cabinets, the HEPA filter is fitted on the back side of the cabinet. Thus, filtered air blows across the work zone in a horizontal direction; this constant flow of air provides material and product protection.
  • These cabinets help to create a particle and bacteria free working environment to carry out specialized work.
  • They find application in various fields such as life science research, microbiology, IVF, IUI and histopathology / pathology labs, plant tissue and cell culture and pharmaceutical and electronics industry and many more.
    •
    Laminar Air Flow Workstation (Horizontal) Mild Steel RSHM-58

    Cleanliness Class 100.
    Velocity 0.35-0.50m/sec.
    HEPA Filter Confirms to ISO standard 14644 (Class 5).
    99.97%-99.99% efficiency for particles down to 0.3 micron.
    Mesh guard for protection of HEPA Filter.
    Pre Filter 90.00% efficiency for particles down to 5 micron.
    Airflow Frontward Horizontally. High airflow capacity.
    Noise Level Low noise level. 60 decibel ± 5%.
    Cabinet The cabinet is made up of Mild Steel which is duly powder coated.
    Side Panels 6mm±5mm thick Acrylic sheet.
    Work Table Made up of stainless steel 304gr. Cock for gas on work table.
    Front door Made up of Acrylic (Foldable).
    UV Lamp To sterilize the work zone.
    15/30W (make Philips Holland).
    Illumination High intensity LED white light for easy operations.
    Heavy Duty Blower Dynamically balanced with 0.25 HP Electric Motor mounted on an anti vibration pad 1440rpm motor.
    Switches Microprocessor based switches for Blower, LED light & UV light with LED back light display. (UV light with Timer).
    Pressure 0-50mm range (Digital Manometer with filter failure alarm).
    Power Supply 230V ± 10V/50 Hz single phase A.C.

    Model No. Working Area Sizes
    RSHM-58-12 60 x 60 x 60 cm
    RSHM-58-13 90 x 60 x 60 cm
    RSHM-58-14 120 x 60 x 60 cm
    RSHM-58-14A 180 x 60 x 60 cm

    Advanced Laminar Air Flow Workstation Horizontal 'Mild Steel'

    Model :- RSHM-58A Series
  • We offer a precision engineered range of horizontal Laminar Air Flow workstations, which are manufactured in line with the international quality standards to ensure optimum quality in the final product.
  • In our horizontal laminar air flow cabinets, the HEPA filter is fitted on the back side of the cabinet. Thus, filtered air blows across the work zone in a horizontal direction; this constant flow of air provides material and product protection.
  • These cabinets help to create a particle and bacteria free working environment to carry out specialized work.
  • They find application in various fields such as life science research, microbiology, IVF, IUI and histopathology/pathology labs, plant tissue and cell culture and pharmaceutical and electronics industry and many more.
    •
    Advanced Laminar Air Flow Workstation (Horizontal) Mild Steel RSHM-58A

    Cleanliness Class 100.
    Velocity 0.35-0.50m/sec.
    HEPA Filter Confirms to ISO standard 14644 (Class 5).
    99.97%-99.99% efficiency for particles down to 0.3 micron.
    Mesh guard for protection of HEPA Filter.
    Pre Filter 90.00% efficiency for particles down to 5 micron.
    Airflow Frontward Horizontally. High airflow capacity.
    Noise Level Low noise level. 60 decibel ± 5%.
    Cabinet The cabinet is made up of Mild Steel which is duly powder coated.
    Work Table Made up of stainless steel 304gr. Cock for gas on work table.
    Front door Made of Toughened glass. (Motorized for easy working).
    UV Lamp To sterilize the work zone.
    15/30W (make Philips Holland).
    Illumination High intensity LED white light for easy operations.
    Heavy Duty Blower Dynamically balanced with 0.25 HP Electric Motor mounted on an anti-vibration pad 1440rpm motor.
    Switches Microprocessor based control touch panel for Blower, LED light & UV light with LED back light display. (UV light with Timer). Motorized front door of toughened glass.
    Pressure 0-50mm range (Digital Manometer with filter failure alarm
    Power Supply 230V ± 10V/50 Hz single phase A.C.
    Electricals 15/5 AMP socket with switch.
    Safety Features Voltage fluctuations Protection. Micro switches for UV & LED Lights.
    Stand Castor Wheels for easy movement. Front Wheels are lockable with brakes.

    Model No. Working Area Sizes
    RSHM-58A-15 60 x 60 x 60 cm
    RSHM-58A-16 90 x 60 x 60 cm
    RSHM-58A-17 120 x 60 x 60 cm
    RSHM-58A-18 150 x 60 x 60 cm

    Advanced Laminar Air Flow Workstation Horizontal Complete Stainless Steel

    Model :- RSHS-58A Series
  • We offer a precision engineered range of Horizontal Laminar Air Flow workstations, which are manufactured in line with the international quality standards to ensure optimum quality in the final product.
  • In our horizontal laminar air flow cabinets, the HEPA filter is fitted on the back side of the cabinet. Thus, filtered air blows across the work zone in a horizontal direction; this constant flow of air provides material and product protection.
  • These cabinets help to create a particle and bacteria free working environment to carry out specialized work.
  • They find application in various fields such as life science research, microbiology, IVF, IUI and histopathology / pathology labs, plant tissue and cell culture and pharmaceutical and electronics industry and many more.
    •
    Advanced Laminar Air Flow Workstation (Horizontal) Complete S.S. RSHS-58A

    Cleanliness Class 100.
    Velocity 0.35-0.50m/sec.
    HEPA Filter Confirms to ISO standard 14644 (Class 5).
    99.97%-99.99% efficiency for particles down to 0.3 micron.
    Mesh guard for protection of HEPA Filter.
    Pre Filter 90.00% efficiency for particles down to 5 micron.
    Airflow Frontward Horizontally. High airflow capacity.
    Noise Level Low noise level. 60 decibel ± 5%.
    Cabinet The cabinet is made up of 304 grade Stainless Steel.
    Work Table Made up of stainless steel 304gr. Cock for gas on work table.
    Front door Made of Toughened glass. (Motorized for easy working).
    UV Lamp To sterilize the work zone.
    15/30W (make Philips Holland).
    Illumination High intensity LED white light for easy operations.
    Heavy Duty Blower Dynamically balanced with 0.25 HP Electric Motor mounted on an anti vibration pad 1440rpm motor.
    Switches Microprocessor based control touch panel for Blower, LED light & UV light with LED back light display. (UV light with Timer). Motorized front door of toughened glass.
    Pressure 0-50mm range (Digital Manometer with filter failure alarm
    Power Supply 230V ± 10V/50 Hz single phase A.C.
    Electricals 15/5 AMP socket with switch.
    Safety Features Voltage fluctuations Protection. Micro switches for UV & LED Lights.
    Stand Castor Wheels for easy movement. Front Wheels are lockable with brakes.

    Model No. Working Area Sizes
    RSHS-58A-19 60 x 60 x 60 cm
    RSHS-58A-20 90 x 60 x 60 cm
    RSHS-58A-21 120 x 60 x 60 cm
    RSHS-58A-22 150 x 60 x 60 cm
    Back
